Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 10 - 65W
• Small size
• 1"×2.3" (TECS10F/20F) ,1"×3" (TECS45F/65F)
• Harmonic attenuator (Complies with IEC61000-3-2)
• ClassII: No FG connection is necessary
Free warranty period 5-year (Refer to Instruction Manuals)

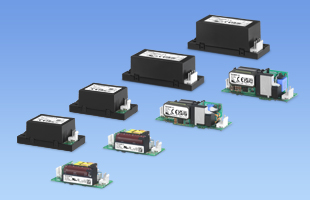

One of the world’s smallest standard power supplies.
Compatible with a wide range of applications, from industrial equipment to building systems and consumer devices.
By achieving high efficiency and low power consumption, it contributes to green energy initiatives.
| Model | Output Wattage | Rated Input | Output Voltage | Safety Certifications | Cooling method |
|---|---|---|---|---|---|
| 10W | 85 - 264VAC 1Φ | 5V, 12V, 15V, 24V |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
EN62368-1
|
Forced Air
Convection
|
|
| 20W | 85 - 264VAC 1Φ | 5V, 12V, 15V, 24V |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
EN62368-1
|
Forced Air
Convection
|
|
| 45W | 85 - 264VAC 1Φ | 5V, 12V, 24V |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
EN62368-1
|
Forced Air
Convection
|
|
| 65W | 85 - 264VAC 1Φ | 5V, 12V, 24V |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
EN62368-1
|
Forced Air
Convection
|
