TEPSseries

TEPS65F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 65W
Rated Output Voltage: 5V, 12V, 24V

• Small size
• 1"×1.5" (TEPS10F/20F) ,1"×2.3" (TEPS45F/65F)
• Harmonic attenuator (Complies with IEC61000-3-2)
• All in one type
• ClassII: No FG connection is necessary

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the TEPS series?

One of the world’s smallest standard power supplies.
Compatible with a wide range of applications, from industrial equipment to building systems and consumer devices.
By achieving high efficiency and low power consumption, it contributes to green energy initiatives.

Technical features

  • Small size & high efficiency
  • Low standby power
  • Low leakage current
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
N: with Cover
3D CAD data STEP Standard model
N: with Cover
IGES Standard model
N: with Cover

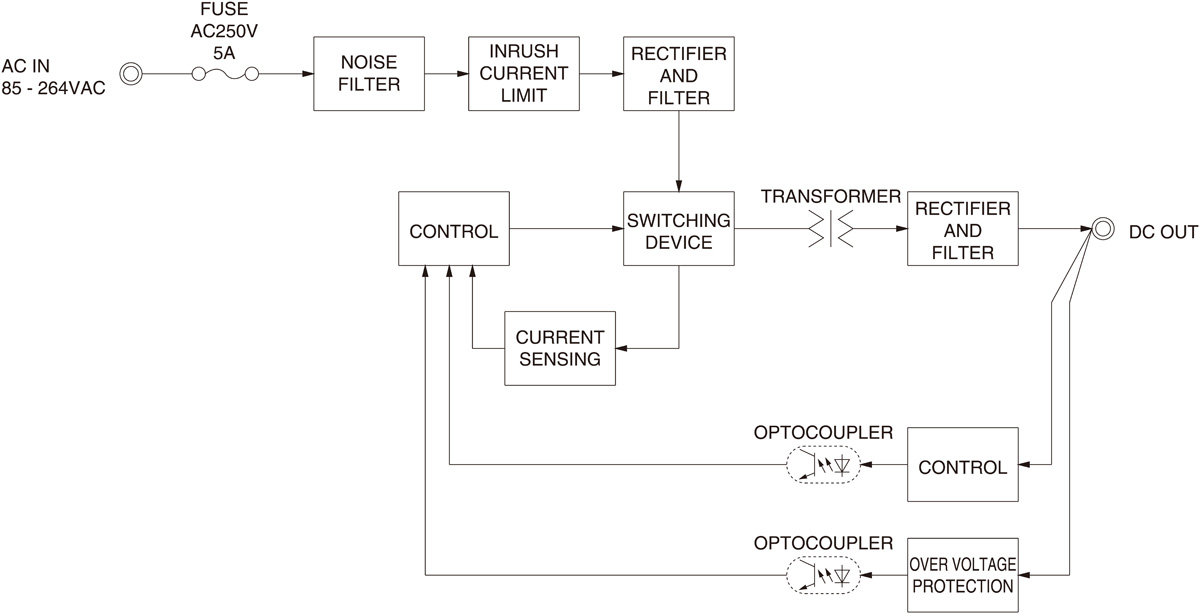

Block diagram

/tool/tag/fig/e_blo_teps65f.jpg
Safety certification

  • EAM-03-000

    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 3A
    Compact size
    Low leakage current type
    1-stage filter

TEP(1)  S(2)  65(3)  F(4)  □□(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Low leakage current
H: with output peak current (12V, 24V)
N: with cover
Catalog download

TEPS65F specifications (overview)

Product TEPS65F05 TEPS65F12 TEPS65F12-H TEPS65F24 TEPS65F24-H
Input voltage 85 - 264VAC 1Φ 85 - 264VAC 1Φ 85 - 264VAC 1Φ 85 - 264VAC 1Φ 85 - 264VAC 1Φ
Output Wattage 50.0W 65.4W 65.4W (90.0W) 66.0W 66.0W (90.0W)
Voltage・Current 5V 10.0A 12V 5.45A 12V 5.45A (peak: 7.50A) 24V 2.75A 24V 2.75A (peak: 3.75A)
Voltage variable range
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1) ,EN62368-1
Structure External dimensions (W×H×D) 25.4x27.5x58.5mm [1.00x1.08x2.30 inches]
Cooling method Convection/Forced air *
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
