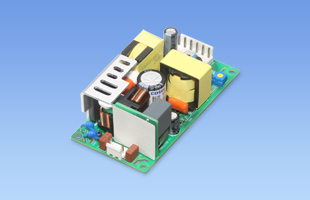

UMHA120F

UMHAseries

UMHA120F

New Product
Recommended products
ANSI/AAMI ES60601-1
EN60601-1 3rd
C-UL (equivalent to CAN/CSA-C22.2 No.60601-1)

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 120W
Rated Output Voltage: 12V, 15V, 18V, 24V, 48V

• For medical electric equipment
• Medical Isolation Grade 2MOPP
• 4kV isolation
• Suitable for CF application
• Power factor correction
• 2"x 4" standard footprint

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Low leakage current
Inch size

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

EAM-03-000
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 3A
Compact size
Low leakage current type
1-stage filter

UMH⁽¹⁾ A⁽²⁾ 120⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
C: with Coating
T: Terminal block

Data sheet download

UMHA120F specifications (overview)

Product		UMHA120F-12-Y	UMHA120F-15-Y	UMHA120F-18-Y	UMHA120F-24-Y	UMHA120F-48-Y
Input voltage		AC85 ～ 264V 1Φ	AC85 ～ 264V 1Φ	AC85 ～ 264V 1Φ	AC85 ～ 264V 1Φ	AC85 ～ 264V 1Φ
Output	Wattage	120W	120W	120.6W	120W	120W
	Voltage・Current	12V 10A	15V 8A	18V 6.7A	24V 5A	48V 2.5A
	Voltage variable range	11.40 to 12.60V	14.25 to 15.75V	18.00 to 19.80V	22.80 to 25.20V	45.60 to 50.40V
Applicable standards	Safety Certifications	ANSI/AAMI ES60601-1, EN60601-1 3rd, C-UL (equivalent to CAN/CSA-C22.2 No.60601-1)
Structure	External dimensions (W×H×D)	50.8x32.1x101.6mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
