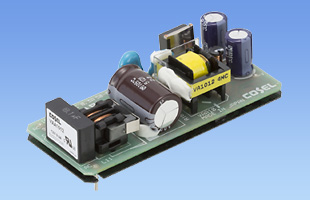

VAA10

VAAseries

Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 10W
Rated Output Voltage: 5V,12V

• P.C. board mount AC-DC converter
• Built-in inrush current and overcurrent protection circuits
• Small and compact size

Free warranty period 2-year

Release year: 1998

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

VAA⁽¹⁾ 10⁽²⁾ 05⁽³⁾

(1) Series name
(2) Output wattage
(3) Output voltage

Product		VAA1005	VAA1012
Input voltage		AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V
Output	Wattage	10.0W	10.8W
	Voltage・Current	5V 2.0A	12V 0.9A
	Voltage variable range
Applicable standards	Safety Certifications	UL60950-1, C-UL Complies with DEN-AN (External Fuse is required)
Structure	External dimensions (W×H×D)	32x18x72.5mm [1.26x0.71x2.85 inches]
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
