VAAseries

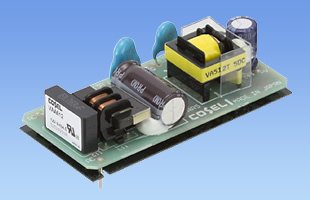

VAA5

  • Production discontinued (May 19, 2023)
  • UL60950-1
  • C-UL Complies with DEN-AN (External Fuse is required)
  • RoHS
    UL・C-UL
Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 5W
Rated Output Voltage: 5V,12V

• P.C. board mount AC-DC converter
• Built-in inrush current and overcurrent protection circuits
• Small and compact size

Free warranty period 2-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

  • TUHS5F

    • Recommended products
    • UL60950-1
    • C-UL (CSA60950-1)
    • EN62368-1
    • RoHS
    Rated Input: AC85 - 264V 1Φ,DC120 - 370V
    Rated Output Wattage: 5W
    Rated Output Voltage: 5V,12V,15V,24V

VAA(1)  5(2)  05(3)

(1) Series name
(2) Output wattage
(3) Output voltage
Catalog download

VAA5 specifications (overview)

Product VAA505 VAA512
Input voltage AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V
Output Wattage 5.0W 5.4W
Voltage・Current 5V 1.0A 12V 0.45A
Voltage variable range
Applicable standards Safety Certifications UL60950-1, C-UL Complies with DEN-AN (External Fuse is required)
Structure External dimensions (W×H×D) 32x18x65mm [1.26x0.71x2.56 inches]
Cooling method Convection
Technical data Characteristic data
Estimated life data
EMC data - -
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
