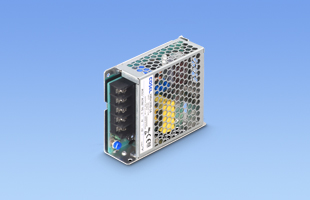

WBA35B

WBAseries

New Product
Recommended products
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
EN62368-1

Rated Input: AC170 - 305 1Φ
Rated Output Wattage: 35W
Rated Output Voltage: 5V,12V,24V,48V

• Wide input 170 - 305VAC (Accepts 230/277VAC Nominal Inputs)
• Wide temperature range (-20°C to +70°C, Derating is required)
• Operating altitude up to 5000 meters
• 4kV isolation
• Low-profile
• Economical design
• Complies with SEMI F47 (See Instruction Manual)

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-04-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 4A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

WB⁽¹⁾　A⁽²⁾　35⁽³⁾　B⁽⁴⁾　-　□⁽⁵⁾　-　□⁽⁶⁾　

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
C：With Coating
G：Low leakage current
T1：Horizontal terminal block
See 5.1 in Instruction Manual.

Data sheet download

WBA35B specifications (overview)

Product		WBA35B-5	WBA35B-12	WBA35B-24	WBA35B-48
Input voltage		AC170-305V 1Φ	AC170-305V 1Φ	AC170-305V 1Φ	AC170-305V 1Φ
Output	Wattage	35W	36W	36W	38.4W
	Voltage・Current	5V 7A	12V 3A	24V 1.5A	48V 0.8A
	Voltage variable range	4.50 ～ 5.50V	10.80 ～ 13.20V	21.60 ～ 26.40V	43.20 ～ 52.80V
Applicable standards	Safety Certifications	UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure	External dimensions (W×H×D)	30×82×99mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
