WMAseries

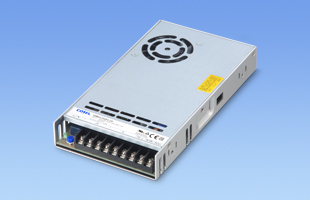

WMA350H

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • ANSI/AAMI ES60601-1
  • C-UL (equivalentto CAN/CSA-C22.2 No.60601-1)
  • EN60601-1 3rd
  • EN61558-2-16 (OVC III)
  • Complies with IEC60601-1-2 4th Ed.
  • RoHS
    UL・C-UL
    TUV
    DEMKO
    CE
    UKCA
Rated Input: AC85 - 132 1Φ/AC170 - 264 1Φ（Selectable by switch）
Rated Output Wattage: 350W
Rated Output Voltage: 12V,24V,36V,48V

• For medical electric equipment
(ANSI/AAMI ES60601-1, EN60601-1 3rd)
• Medical Isolation Grade 2MOPP
• 4kV isolation
• Low-profile
• Economical design

Free warranty period 5-year (Refer to Instruction Manuals)

Release year: 2019

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model
Safety certification
EU Declaration of Conformity

  • NAC-06-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 6A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

WM(1)　A(2)　350(3)　H(4)　-　□(5)　-　□(6)　


(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage selectable by switch
(5) Output voltage
(6) Option
C：With Coating
G：Low leakage current
T1：Horizontal terminal block
See 5.1 in Instruction Manual.
Data sheet download Instruction manual

WMA350H specifications (overview)

Product WMA350H-12 WMA350H-24 WMA350H-36 WMA350H-48
Input voltage AC85-132V 1φ
AC170-264V1φ		 AC85-132V 1φ
AC170-264V1φ		 AC85-132V 1φ
AC170-264V1φ		 AC85-132V 1φ
AC170-264V1φ
Output Wattage 348W 350.4W 349.2W 350.4W
Voltage・Current 12V 29A 24V 14.6A 36V 9.7A 48V 7.3A
Voltage variable range 10.80 ～ 13.20V 21.60 ～ 26.40V 32.40 ～ 39.60V 43.20 ～ 52.80V
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1, ANSI/AAMI ES60601-1, C-UL (equivalentto CAN/CSA-C22.2 No.60601-1), EN60601-1 3rd, EN61558-2-16 (OVC III), Complies with IEC60601-1-2 4th Ed.
Structure External dimensions (W×H×D) 115×30×215mm
Cooling method Forced cooling (internal fan)
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
