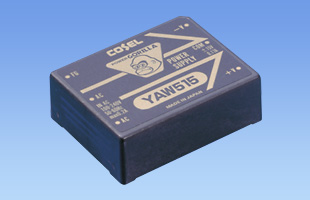

YAW5

YAWseries

YAW5
YAW10

Production discontinued (May 18, 2018)
UL60950-1
EN60950-1
EN50178
CSA C22.2 No.60950-1 Complies with IEC60950-1

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 5W
Rated Output Voltage: ±12 (+24）,±15 (+30）

• Universal input voltage (AC85 - 264V)
• P.C.board mount AC-DC converter
• Built-in inrush current and overcurrent protection circuits
• Small and compact size
• S.M.T. (Surface Mount Technology) implemented for smaller and lighter weight

Free warranty period 2-year

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

TUHS3F
- Recommended products
- UL60950-1
- C-UL (CSA60950-1)
- EN62368-1
Rated Input: AC85 - 264V 1Φ,DC120 - 370V
Rated Output Wattage: 3W
Rated Output Voltage: 5V,12V,15V,24V
TUHS5F
- Recommended products
- UL60950-1
- C-UL (CSA60950-1)
- EN62368-1
Rated Input: AC85 - 264V 1Φ,DC120 - 370V
Rated Output Wattage: 5W
Rated Output Voltage: 5V,12V,15V,24V

YA⁽¹⁾ W⁽²⁾ 5⁽³⁾ 12⁽⁴⁾ □⁽⁵⁾

(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
approved CSA certified: E

Catalog download

YAW5 specifications (overview)

Product		YAW512	YAW515
Input voltage		AC85 - 264V 1Φ or DC110 - 370V	AC85 - 264V 1Φ or DC110 - 370V
Output	Wattage	5.28W	5.10W
	Voltage・Current	±12V (+24V) 0.22A	±15V (+30V) 0.17A
	Voltage variable range	Fixed	Fixed
Applicable standards	Safety Certifications	UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Structure	External dimensions (W×H×D)	45x19.5x58mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data	-	-
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
