YSseries

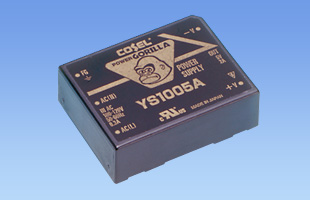

YS10

  • Production discontinued (May 18, 2018)
  • UL60950-1
  • C-UL
  • RoHS
    UL・C-UL
Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 10W
Rated Output Voltage: 5V,12V

• P.C. board mount AC-DC converter
• Built-in inrush current and overcurrent protection circuits
• Small and compact size

Free warranty period 2-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

  • TUHS10F

    • Recommended products
    • UL60950-1
    • C-UL (CSA60950-1)
    • EN62368-1
    • RoHS
    Rated Input: AC85 - 264V 1Φ,DC120 - 370V
    Rated Output Wattage: 10W
    Rated Output Voltage: 5V,12V,15V,24V

Y(1)  S(2)  10(3)  05A(4)

(1) Series name
(2) Single output
(3) Output wattage
(4) Output voltage
Catalog download

YS10 specifications (overview)

Product YS1005A YS1012A
Input voltage AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V
Output Wattage 10.0W 10.8W
Voltage・Current 5V 2.0A 12V 0.9A
Voltage variable range Fixed Fixed
Applicable standards Safety Certifications UL60950-1, C-UL
Structure External dimensions (W×H×D) 45x18.5x58mm
Cooling method Convection
Technical data Characteristic data
Estimated life data - -
EMC data - -
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
