ZTSseries

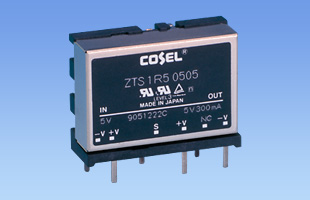

ZTS1R5

  • Production discontinued (November 20, 2023)
  • RoHS
    UL・C-UL
    TUV
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V
Rated Output Wattage: 1.5W
Rated Output Voltage: 5V,12V,15V

• Thin profile
• Isolated between input-output
• Built-in overcurrent protection circuit
• UL recognized, TÜV approved, CSA certified

Free warranty period 5-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

  • MGS1R5

    • Recommended products
    • UL60950-1
    • C-UL
    • EN62368-1
    • RoHS
    Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
    Rated Output Wattage: 1.5W
    Rated Output Voltage: 3.3V,5V,12V,15V

ZT(1)  S(2)  1R5(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Data sheet download

ZTS1R5 specifications (overview)

Product ZTS1R50505 ZTS1R50512 ZTS1R50515 ZTS1R51205 ZTS1R51212 ZTS1R51215 ZTS1R52405 ZTS1R52412 ZTS1R52415 ZTS1R54805 ZTS1R54812 ZTS1R54815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 72V DC36 - 72V DC36 - 72V
Output Wattage 1.50W 1.56W 1.50W 1.50W 1.56W 1.50W 1.50W 1.56W 1.50W 1.50W 1.56W 1.50W
Voltage・Current 5V 0.30A 12V 0.13A 15V 0.10A 5V 0.30A 12V 0.13A 15V 0.10A 5V 0.30A 12V 0.13A 15V 0.10A 5V 0.30A 12V 0.13A 15V 0.10A
Voltage variable range Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed
Applicable standards Safety Certifications
Structure External dimensions (W×H×D) 28x21x10mm
Cooling method Convection
Technical data Characteristic data
Estimated life data - - - - - - - - - - - -
EMC data - - - - - - - - - - - -
Reliability -
MTBF

* For further information and how to use, please see in Cosel product catalog.
