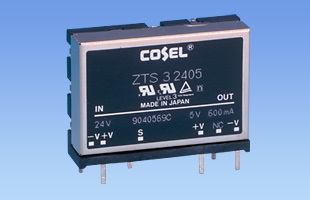

ZTS3

ZTSseries

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V
Rated Output Wattage: 3W
Rated Output Voltage: 5V,12V,15V

• Thin profile
• Isolated between input-output
• Built-in overcurrent protection circuit
• UL recognized, TÜV approved, CSA certified

Free warranty period 5-year

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

Safety certification

ZT⁽¹⁾ S⁽²⁾ 3⁽³⁾ 12⁽⁴⁾ 05⁽⁵⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage

Product		ZTS30505	ZTS30512	ZTS30515	ZTS31205	ZTS31212	ZTS31215	ZTS32405	ZTS32412	ZTS32415	ZTS34805	ZTS34812	ZTS34815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC18 - 36V	DC36 - 72V	DC36 - 72V	DC36 - 72V
Output	Wattage	3W	3W	3W	3W	3W	3W	3W	3W	3W	3W	3W	3W
	Voltage・Current	5V 0.60A	12V 0.25A	15V 0.20A	5V 0.60A	12V 0.25A	15V 0.20A	5V 0.60A	12V 0.25A	15V 0.20A	5V 0.60A	12V 0.25A	15V 0.20A
	Voltage variable range	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Applicable standards	Safety Certifications
Structure	External dimensions (W×H×D)	35.5x26x10mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability	-
	MTBF

* For further information and how to use, please see in Cosel product catalog.
