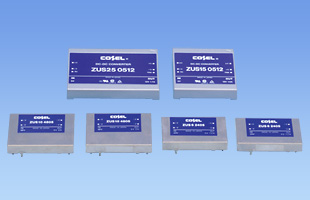

ZUS series | Power Supplies | Products

ZUSseries

Production discontinued (November 20, 2023)
UL60950-1
IEC60950-1
EN50178
CSA C22.2 No.60950-1 Complies with IEC60950-1

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V *
Rated Output Wattage: 1.5 - 25W
*Input voltage range depends on model
*The last order date is different for 3W and 6W 5V input models
*ZUS15, ZUS25 models have been discontinued

• Thin profile
• Isolated between input-output
• Built-in overcurrent protection circuit
• UL recognized, TÜV approved, CSA certified

Free warranty period 5-year

Technical features

Catalog download

Model	Output Wattage	Rated Input	Output Voltage	Safety Certifications	Cooling method
ZUS1R5	1.5W	DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V	5V,12V,15V	UL60950-1 IEC60950-1 EN50178 CSA C22.2 No.60950-1 Complies with IEC60950-1	Convection
ZUS3	3W	DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V	5V,12V,15V	UL60950-1 IEC60950-1 CSA C22.2 No.60950-1 Complies with IEC60950-1	Convection
ZUS6	6W	DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V	3.3V,5V,12V,15V	UL60950-1 IEC60950-1 CSA C22.2 No.60950-1 Complies with IEC60950-1	Convection
ZUS10	10W	DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V	3.3V,5V,12V,15V	UL60950-1 IEC60950-1 CSA C22.2 No.60950-1 Complies with IEC60950-1	Convection
ZUS15	15W	DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 75V	3.3V,5V,12V	UL60950-1 IEC60950-1 CSA C22.2 No.60950-1 Complies with IEC60950-1	Convection
ZUS25	25W	DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 75V	3.3V,5V,12V	UL60950-1 IEC60950-1 CSA C22.2 No.60950-1 Complies with IEC60950-1	Convection
