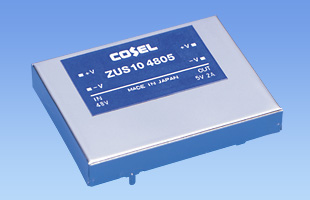

ZUS10

ZUSseries

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V
Rated Output Wattage: 10W
Rated Output Voltage: 3.3V,5V,12V,15V

• Thin profile
• Isolated between input-output
• Built-in overcurrent protection circuit
• UL recognized, TÜV approved, CSA certified

Free warranty period 5-year

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

Safety certification

ZU⁽¹⁾ S⁽²⁾ 10⁽³⁾ 12⁽⁴⁾ 05⁽⁵⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage

Product		ZUS10053R3	ZUS100505	ZUS100512	ZUS100515	ZUS101205	ZUS101212	ZUS101215	ZUS102405	ZUS102412	ZUS102415	ZUS10483R3	ZUS104805	ZUS104812	ZUS104815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC18 - 36V	DC36 - 72V	DC36 - 72V	DC36 - 72V	DC36 - 72V
Output	Wattage	5.28W	8.0W	8.4W	9.0W	10.0W	10.8W	10.5W	10.0W	10.8W	10.5W	6.6W	10.0W	10.8W	10.5W
	Voltage・Current	3.3V 1.6A	5V 1.6A	12V 0.7A	15V 0.6A	5V 2.0A	12V 0.9A	15V 0.7A	5V 2.0A	12V 0.9A	15V 0.7A	3.3V 2.0A	5V 2.0A	12V 0.9A	15V 0.7A
	Voltage variable range	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Applicable standards	Safety Certifications	UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Structure	External dimensions (W×H×D)	45x7x35mm
Structure	Cooling method	Convection
Technical data	Characteristic data	-										-
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability
	MTBF	-										-

* For further information and how to use, please see in Cosel product catalog.
