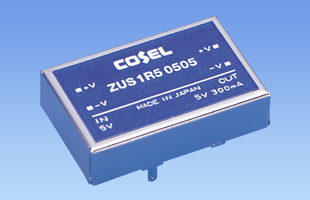

ZUS1R5

ZUSseries

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V
Rated Output Wattage: 1.5W
Rated Output Voltage: 5V,12V,15V

• Thin profile
• Isolated between input-output
• Built-in overcurrent protection circuit
• UL recognized, TÜV approved, CSA certified

Free warranty period 5-year

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

Safety certification

ZU⁽¹⁾ S⁽²⁾ 1R5⁽³⁾ 12⁽⁴⁾ 05⁽⁵⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage

Product		ZUS1R50505	ZUS1R50512	ZUS1R50515	ZUS1R51205	ZUS1R51212	ZUS1R51215	ZUS1R52405	ZUS1R52412	ZUS1R52415	ZUS1R54805	ZUS1R54812	ZUS1R54815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC18 - 36V	DC36 - 72V	DC36 - 72V	DC36 - 72V
Output	Wattage	1.50W	1.56W	1.50W	1.50W	1.56W	1.50W	1.50W	1.56W	1.50W	1.50W	1.56W	1.50W
	Voltage・Current	5V 0.30A	12V 0.13A	15V 0.10A	5V 0.30A	12V 0.13A	15V 0.10A	5V 0.30A	12V 0.13A	15V 0.10A	5V 0.30A	12V 0.13A	15V 0.10A
	Voltage variable range	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Applicable standards	Safety Certifications	UL60950-1, IEC60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Structure	External dimensions (W×H×D)	27.5x7x18mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
