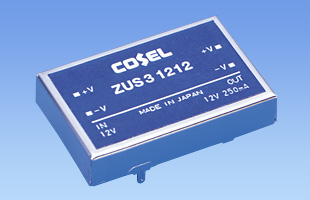

ZUS3

ZUSseries

Production discontinued (November 20, 2023)
UL60950-1
IEC60950-1
CSA C22.2 No.60950-1 Complies with IEC60950-1

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 72V
Rated Output Wattage: 3W
Rated Output Voltage: 5V,12V,15V

• Thin profile
• Isolated between input-output
• Built-in overcurrent protection circuit
• UL recognized, TÜV approved, CSA certified

Free warranty period 5-year

Release year: 1996

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Safety certification

ZU⁽¹⁾ S⁽²⁾ 3⁽³⁾ 12⁽⁴⁾ 05⁽⁵⁾ □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
G: Capacitor between Input and Output is removed.

Data sheet download Instruction manual

ZUS3 specifications (overview)

Product		ZUS30505	ZUS30512	ZUS30515	ZUS31205	ZUS31212	ZUS31215	ZUS32405	ZUS32412	ZUS32415	ZUS34805	ZUS34812	ZUS34815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC18 - 36V	DC36 - 72V	DC36 - 72V	DC36 - 72V
Output	Wattage	3W	3W	3W	3W	3W	3W	3W	3W	3W	3W	3W	3W
	Voltage・Current	5V 0.60A	12V 0.25A	15V 0.20A	5V 0.60A	12V 0.25A	15V 0.20A	5V 0.60A	12V 0.25A	15V 0.20A	5V 0.60A	12V 0.25A	15V 0.20A
	Voltage variable range	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Applicable standards	Safety Certifications	UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Structure	External dimensions (W×H×D)	35x7x23mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.

Recommended replacement products

MUS3
- New Product
- Recommended products
- UL62368-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
- EN62368-1
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 3W
Rated Output Voltage: 3.3V, 5V, 12V, 15V
MGS3
- Recommended products
- UL60950-1
- C-UL
- EN62368-1
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 3W
Rated Output Voltage: 3.3V,5V,12V,15V
SUS3
- Active
- UL60950-1
- C-UL
- EN62368-1
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 3W
Rated Output Voltage: 3.3V,5V,12V,15V
SUCS3
- Active
- UL60950-1
- C-UL
- EN62368-1
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 3W
Rated Output Voltage: 3.3V,5V,12V,15V
