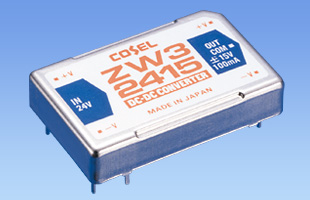

ZWseries

ZW3

  • Production discontinued (April 30, 2008)
Discontinued : 2008,Apr.
Rated Input: DC4.5 - 6V, DC10 - 15V, DC20 - 30V, DC35 - 63V *
Rated Output Wattage: 3W
*Input voltage range depends on model
-

Free warranty period 5-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

  • MUW3

    • New Product
    • Recommended products
    • UL62368-1
    • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
    • EN62368-1
    • RoHS
    Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
    Rated Output Wattage: 3W
    Rated Output Voltage: ±12V (+24) , ±15V (+30)

Z(1)    W(2)    3(3)    05(4)    12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Catalog download

ZW3 specifications (overview)

Product ZW30512 ZW30515 ZW31212 ZW31215 ZW32412 ZW32415 ZW34812 ZW34815
Input voltage DC4.5 - 6.0V DC4.5 - 6.0V DC10 - 15V DC10 - 15V DC20 - 30V DC20 - 30V DC35 - 63V DC35 - 63V
Output Wattage 2.88W 3.0W 2.88W 3.0W 2.88W 3.0W 2.88W 3.0W
Voltage・Current ±12V or +24V 0.12A ±15V or +30V 0.1A ±12V or +24V 0.12A ±15V or +30V 0.1A ±12V or +24V 0.12A ±15V or +30V 0.1A ±12V or +24V 0.12A ±15V or +30V 0.1A
Voltage variable range
Applicable standards Safety Certifications
Structure External dimensions (W×H×D)
Cooling method
Technical data Characteristic data - - - - - - - -
Estimated life data - - - - - - - -
EMC data - - - - - - - -
Reliability -
MTBF - - - - - - - -

* For further information and how to use, please see in Cosel product catalog.
