JAC series

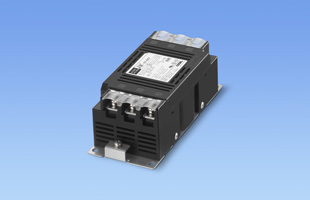

JAC-60

  • Recommended products
  • UL60939
  • CSA C22.2 No.8 (C-UL)
  • EN60939 (DEMKO)
  • ENEC
  • RoHS
    UL・C-UL
    DEMKO
    ENEC

Three-phase 500VAC　60A
Compact and low profile
High-attenuation from 150kHz to 1MHz
1-stage filter

• Products meeting SCCR
6-30A rated SCCR: 10kA (UL 508 compliant)
40-60A rated SCCR: 14kA (UL 508 compliant)
   *Obtained in combination with the breaker

• Push down type terminal block (6-30A rated)

♦Ideal options for various noise‑reduction requirements♦
   H: Ultra low-frequency and ultra high attenuation (with a high‑permeability choke coil)
   U: lmprove differential mode attenuation (Rated voltage 250V)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data DXF Standard Model
3D CAD data STEP Standard Model
IGES Standard Model

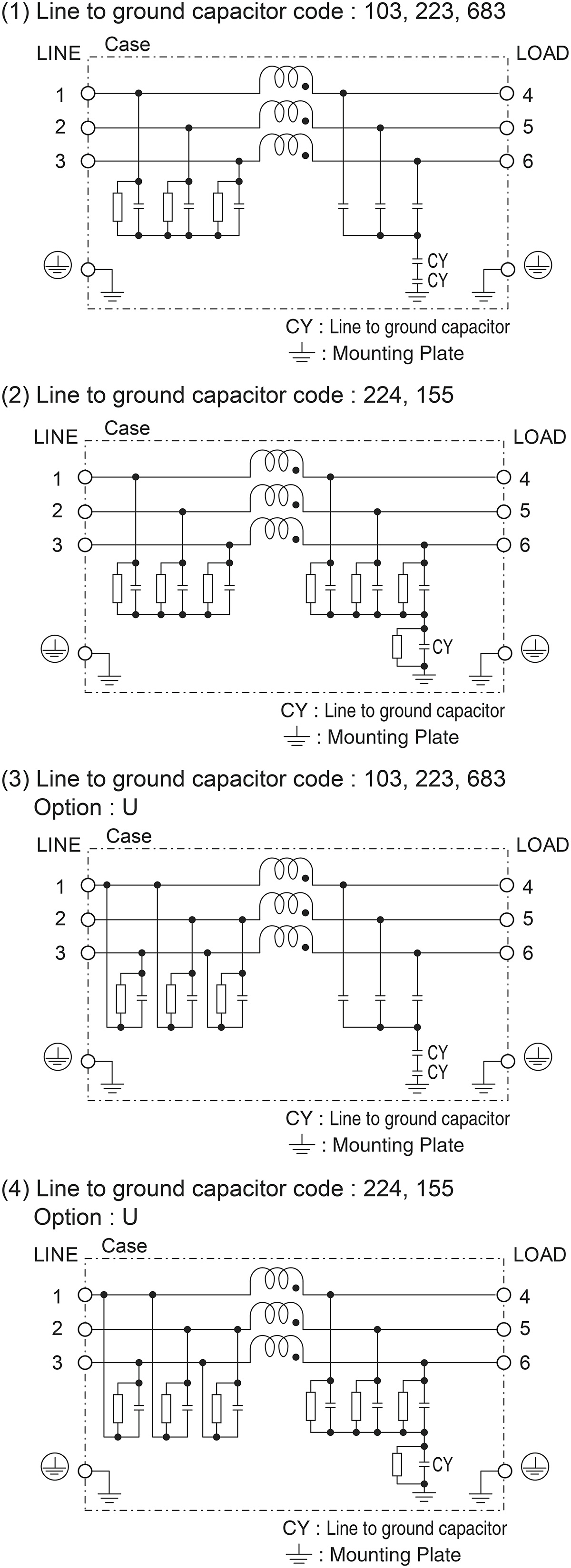

Circuit diagram

/tool/tag/fig/e_cir_jac-60.jpg

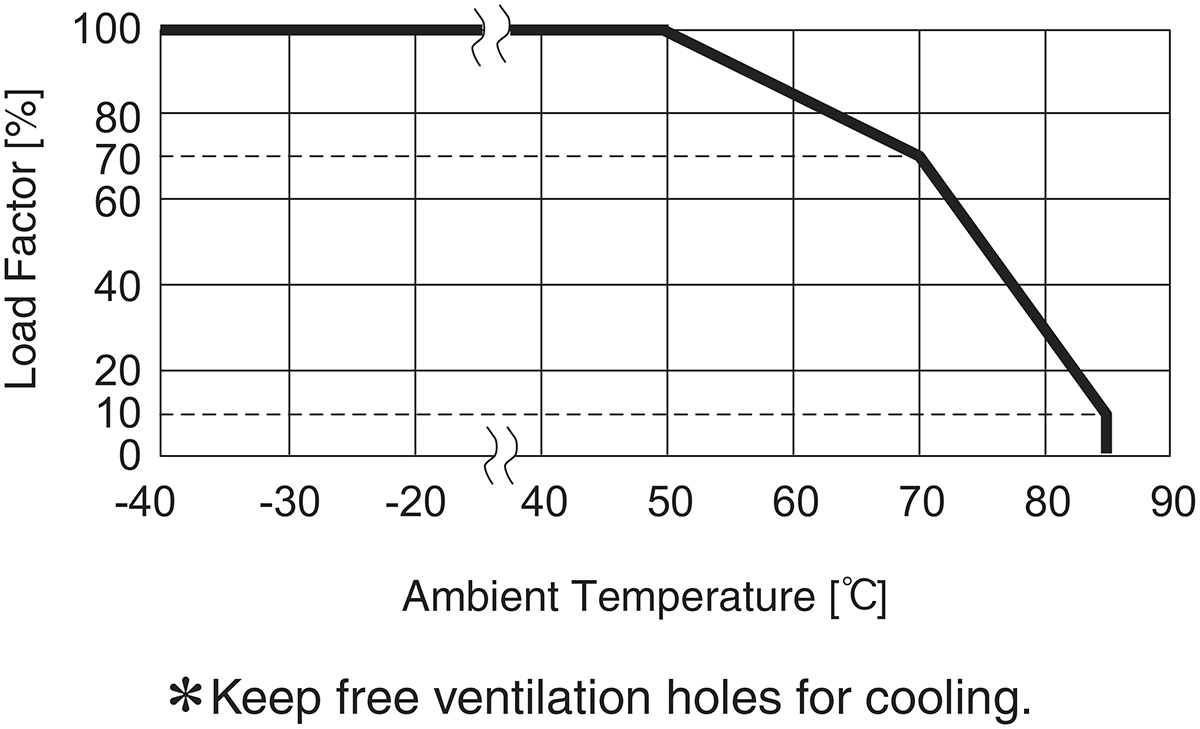

Derating characteristics

/tool/tag/fig/e_der_jac-60.jpg

JAC(1)  -  60(2)  -  683(3)  -  □(4)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  H:Ultra high-attenuation type
    "103" , "223" , "683" is applied.
  U:lmprove differential mode attenuation (Rated voltage 250V)

Catalog download

JAC-60 specifications (overview)

Product JAC-60-103 JAC-60-223 JAC-60-683 JAC-60-224 JAC-60-155
leakage current※ 0.5 mA / 1.0mA max
0.05mA / 0.1mA max		 1.0mA / 2.0mA max
0.1mA / 0.2mA max		 2.5 mA / 5.0mA max
0.35mA / 0.7mA max		 15 mA / 24 mA max
2.0mA / 4.0mA max		 80 mA / 125mA max
9.0mA / 18 mA max
Capacitor capacity (nominal value) 0.01μF 0.022μF 0.068μF 0.22μF 1.5μF
Rated voltage Three-phase Three-wire 500V 50/60Hz
Rated current

60A
Safety Certifications

UL60939[Overvoltage Category: Ⅲ Altitude: 3000m], CSA C22.2 No.8 (C-UL), EN60939 (DEMKO)[Overvoltage Category: Ⅲ Altitude: 3000m], ENEC
External dimensions
(W×H×D)

65x54x153 mm [2.56x2.13x6.02 inches]
Technical data Characteristic data
Safety Standards Certification
Reliability
MTBF
* Input 250/500VAC 60Hz ( input Δ-connection 250/400VAC 60Hz in case of 224,155)
Upper row: Δ-connection, Lower row: Y-connection
