TAC-30

TAC series

Recommended products
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC

Three phase 500VAC　30A
General purpose
Low profile
High-attenuation type from 150kHz to 1MHz
1-stage filter

• Products meeting SCCR
4-60A rated SCCR: 14kA (UL 508 compliant)
80-150A rated SCCR: 25kA (UL 508 compliant)
200-300A rated SCCR: 50kA (UL 508 compliant)
*Obtained in combination with the breaker

• Push down type terminal block(4-30A rated)

♦Ideal options for various noise‑reduction requirements♦
U: Improve differential mode attenuation type(50-300A rated)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model D: DIN rail installation type
3D CAD data	IGES	Standard Model D: DIN rail installation type

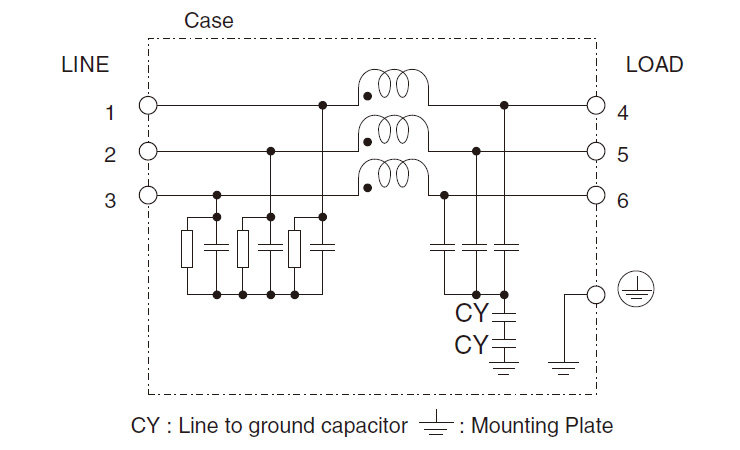

Circuit diagram

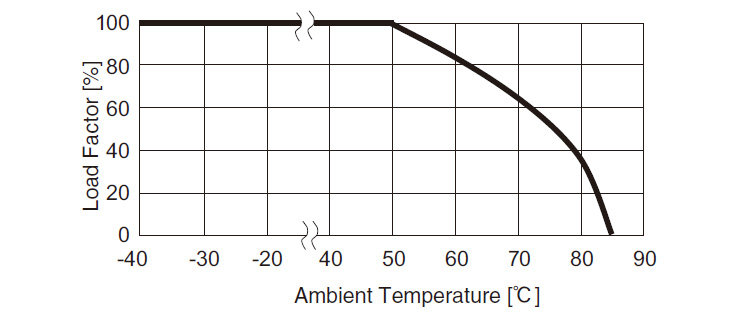

Derating characteristics

TAC⁽¹⁾ - 30⁽²⁾ - 683⁽³⁾ - □⁽⁴⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

Catalog download

TAC-30 specifications (overview)

Product		TAC-30-103	TAC-30-223	TAC-30-683
leakage current^※		0.5mA / 1.0mA max	1.0mA / 2.0mA max	2.5mA / 5.0mA max
Capacitor capacity (nominal value)		10,000pF	22,000pF	68,000pF
Rated voltage		Three phase Three-wire 500V 50/60Hz
Rated current		30A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions (W×H×D)		63x64x128 mm [2.48x2.52x5.04 inches] (Option: -D refer to external view)
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 250/500VAC 60Hz
