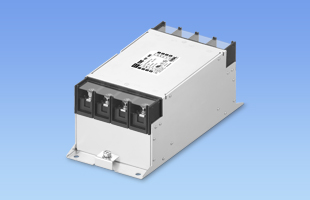

Three-Phase Four-Wire System
500VAC 120A
High-Attenuation from 150kHz to 1MHz
2-Stage Filter
• Products meeting SCCR
25-80A rated SCCR: 14kA (UL 508 compliant)
*Obtained in combination with the breaker
120-300A rated SCCR: 10kA (Deemed value of UL508A)
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|

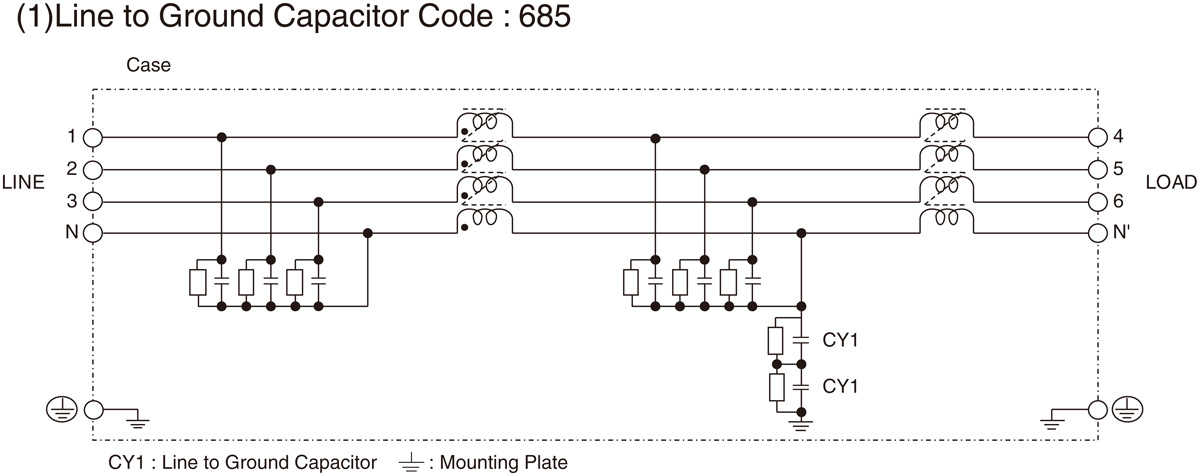

YAC(1) - 120(2) - 685(3)
(1) Model Name
(2) Rated Current
(3) Line to Ground Capacitor Code
Refer to Product Line-up.
*Y-Connection
*1 At normal operation (Input 500V 50Hz) with applying 10V between N (N') and FG (According to IEC60939) .
*2 At the worst case under normal operation (Input 500V 60Hz) .
