YAC-64

YAC series

New Product
Recommended products
UL60939
CSA C22.2 No.8 (C-UL)
EN60939 (DEMKO)
ENEC

Three-Phase Four-Wire System
500VAC 64A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter

• Products meeting SCCR
25-80A rated SCCR: 14kA (UL 508 compliant)
*Obtained in combination with the breaker

120-300A rated SCCR: 10kA (Deemed value of UL508A)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

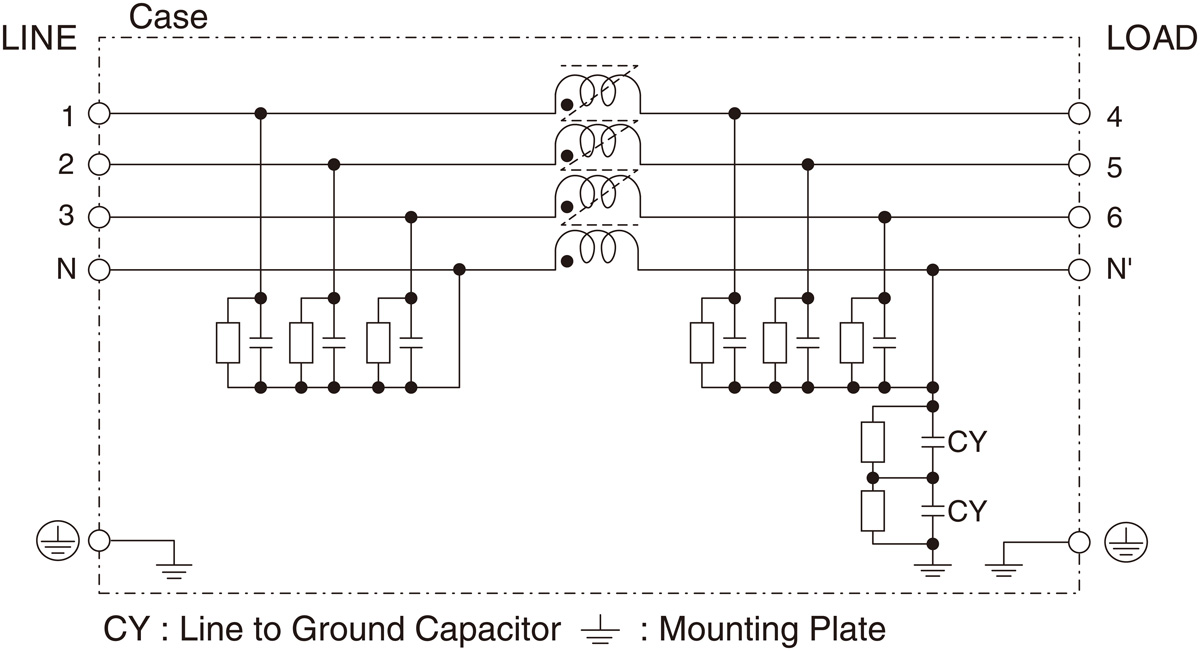

Circuit diagram

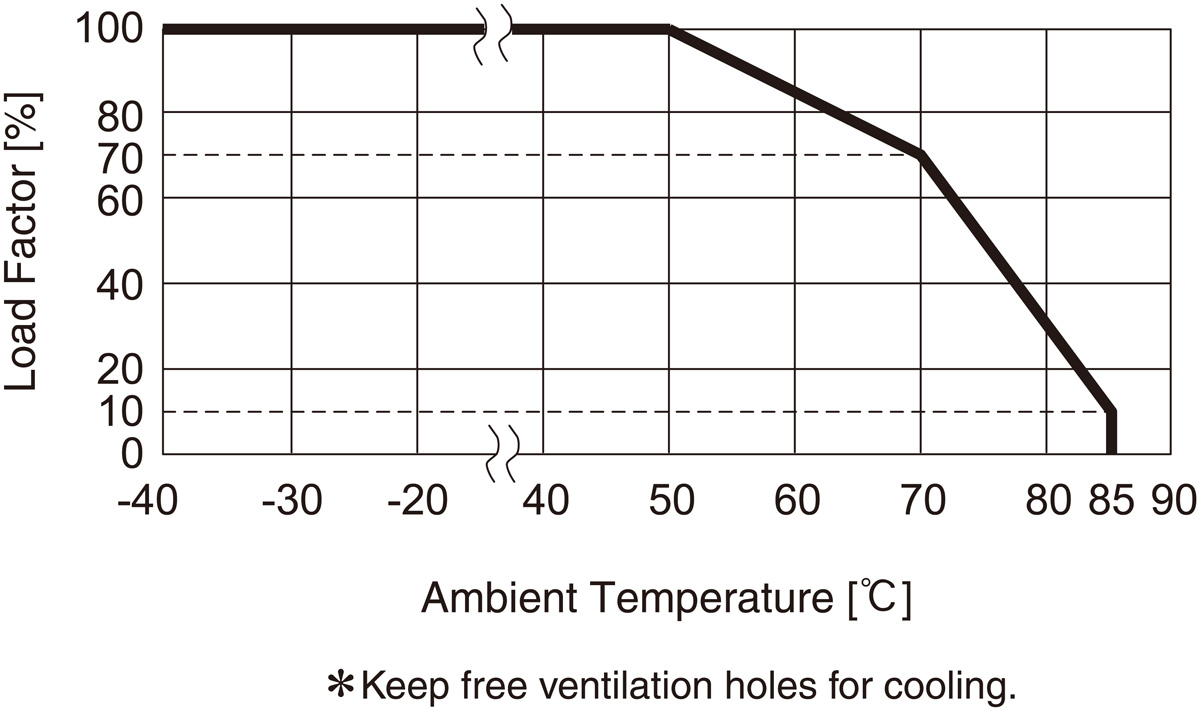

Derating characteristics

YAC⁽¹⁾ - 64⁽²⁾ - 685⁽³⁾　

(1) Model Name
(2) Rated Current
(3) Line to Ground Capacitor Code
Refer to Product Line-up.

Catalog download

YAC-64 specifications (overview)

Product		YAC-64-685
leakage current^※		10.7mA typ　1 　55mA max 2
Capacitor capacity (nominal value)		6.8μF
Rated voltage		Three-Phase Four-Wire System Y-Connection 500/289VAC 50/60Hz
Rated current		64A
Safety Certifications		UL60939[Overvoltage Category: Ⅲ Altitude: 3000m], CSA C22.2 No.8 (C-UL), EN60939 (DEMKO)[Overvoltage Category: Ⅲ Altitude: 3000m], ENEC
External dimensions (W×H×D)		100x88x179 mm [3.94x3.46x7.05 inches]
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

*Y-Connection
*1 At normal operation (Input 500V 50Hz）with applying 10V between N (N') and FG (According to IEC60939) .
*2 At the worst case under normal operation (Input 500V 60Hz) .
