AEA600F

AEAseries

AEA600F
AEA800F
AEA1000F

New Product
Recommended products
UL62368-1
ANSI/AAMI ES 60601-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1. CAN/CSA-C22.2 No.60601-1)
EN62368-1
EN60601-1 3rd
EN62477-1 (OVCⅢ)

Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 600W
Output Voltage: 24V, 32V, 36V, 48V

• Single output with triple peak current
• High efficiency
• Low profile (41mm, 1.61inch = meet 1U height)
• Medical Isolation Grade 2MOPP (Suitable for BF application)
• Meets EN62477-1 OVCⅢ
• Complies with SEMI F47
• Meets UL508 (Option: -T5. Except 32V)

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the AEA series?

Two cooling methods available: natural air cooling and forced-air cooling.
Designed to peak power, making it ideal for motors and amplifiers with high inrush currents.
Meets EN62477-1 OVCⅢ, allowing direct connection to factory wiring.
Optional RS-485 communication enables remote monitoring and control from distant locations.

Introducing serial communication functions option for the AEA, HCA and HFA series

Technical features

Auxiliary Power
Parallel Operation
Alarm
J: Connector type

Type	Model number	Description	PDF	DXF
Harness
	H-IN-11	Mating harness for input of the connector type power supply. (J option)	PDF download	-
	H-OU-53	Mating harness for output of the connector type power supply. (J option)	PDF download	-
	H-PA-17	Harness for parallel operation.	PDF download	-
	H-SN-39	Harness for using AUX(5V) remote control and PG terminal.	PDF download	-
	H-SN-71	Harness for using functions of CN3(option:-R3)	PDF download	-

Instruction manual
Optional parts (sold separately)
AEA Series (-I4 option) MODBUS Communication Manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (includes N option) T: Vertical terminal block J:Connector type R3: with Subfeatures
3D CAD data	STEP	Standard model N: with Cover T: Vertical terminal block J: Connector type R3: with Subfeatures
3D CAD data	IGES	Standard model N: with Cover T: Vertical terminal block J: Connector type R3: with Subfeatures

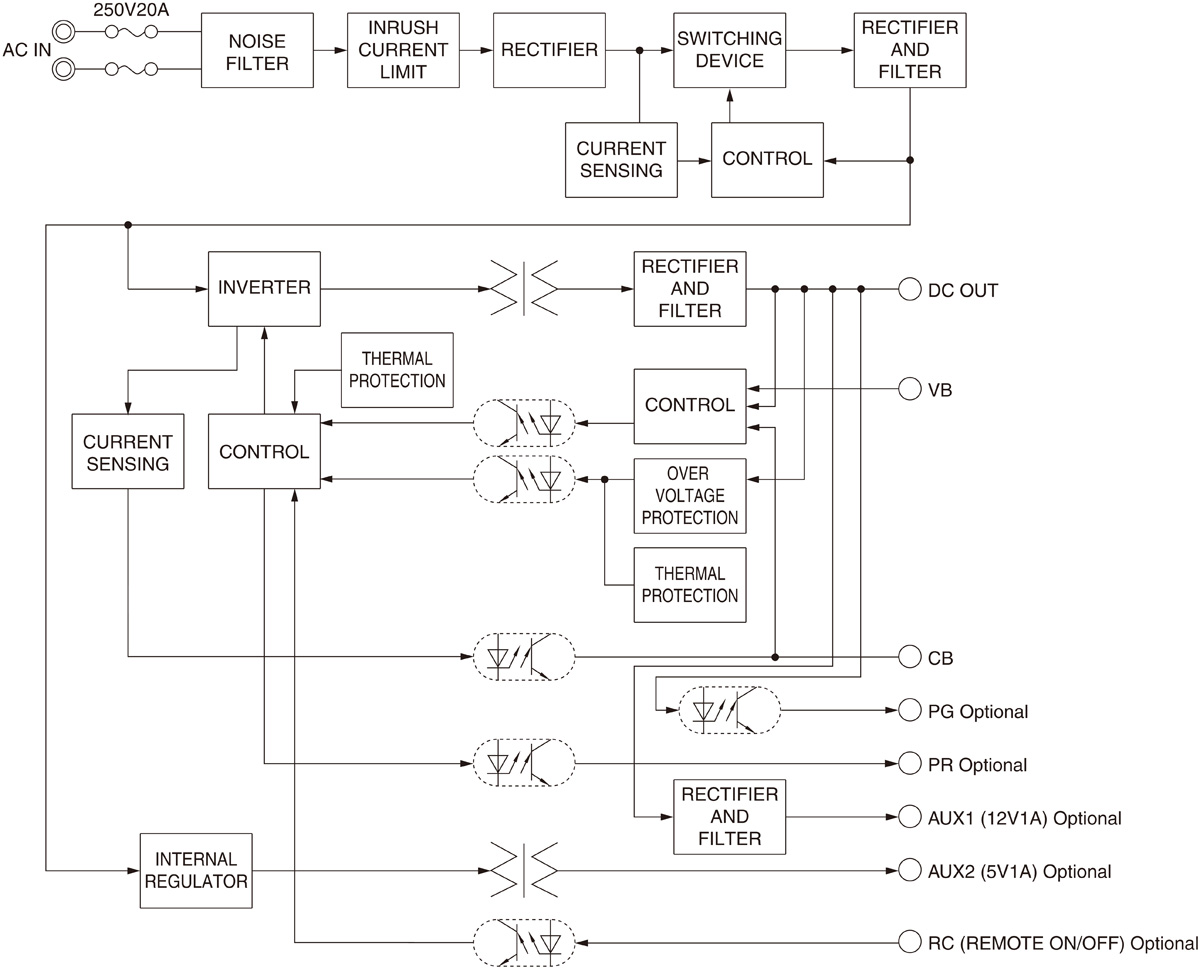

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

EAC-20-472
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 20A
General purpose
Compact size
Attenuation type from 150kHz to 1MHz
1-stage filter

AE⁽¹⁾ A⁽²⁾ 600⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
N: with Cover
T: Vertical terminal block
J: Connector type
R3: with Subfeatures (5V AUX, 12V AUX, Remote, Alarm function)
I4: with MODBUS interface and Subfeatures (5V AUX, 12V AUX, Remote, Alarm function)
T5: UL508 (Except 32V)
P5: Overcurrent protection to shut down the output.
Specification is changed at option, refer to Instruction Manual.
3D product images are available.

Read Me First
Standard N: with Cover T: Vertical terminal block J: Connector type

Catalog download

AEA600F specifications (overview)

Product		AEA600F-24	AEA600F-32	AEA600F-36	AEA600F-48
Input voltage		85 - 264VAC 1Φ *	85 - 264VAC 1Φ *	85 - 264VAC 1Φ *	85 - 264VAC 1Φ *
Output	Wattage	420.0W (Peak: 1260W) 230VAC, Convection Cooling 600.0W (Peak: 1260W) 230VAC, Forced Air Cooling	422.4W (Peak: 1260W) 230VAC, Convection Cooling 601.6W (Peak: 1260W) 230VAC, Forced Air Cooling	421.2W (Peak: 1260W) 230VAC, Convection Cooling 601.0W (Peak: 1260W) 230VAC, Forced Air Cooling	422.4W (Peak: 1262W) 230VAC, Convection Cooling 600.0W (Peak: 1262W) 230VAC, Forced Air Cooling
	Voltage・Current	24V, 17.5A (Peak: 52.5A) 230VAC, Convection Cooling 24V, 25.0A (Peak: 52.5A) 230VAC, Forced Air Cooling	32V, 13.2A (Peak: 39.4A) 230VAC, Convection Cooling 32V, 18.8A (Peak: 39.4A) 230VAC, Forced Air Cooling	36V, 11.7A (Peak: 35.0A) 230VAC, Convection Cooling 36V, 16.7A (Peak: 35.0A) 230VAC, Forced Air Cooling	48V, 8.8A (Peak: 26.3A) 230VAC, Convection Cooling 48V, 12.5A (Peak: 26.3A) 230VAC, Forced Air Cooling
	Voltage variable range	21.6 - 26.4V	28.8 - 35.2V	32.4 - 39.6V	43.2 - 52.8V
Applicable standards	Safety Certifications	UL62368-1, ANSI/AAMI ES 60601-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1. CAN/CSA-C22.2 No.60601-1) , EN62368-1, EN60601-1 3rd, EN62477-1 (OVCⅢ)
Structure	External dimensions (W×H×D)	41x127x186mm [1.61x5x7.32 inches](without terminal block)
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
