FDAseries

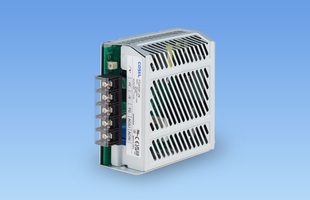

FDA50F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: 180 - 528VAC 1Φ / 255 - 746VDC
Rated Output Wattage: 50W
Rated Output Voltage: 24V
• High efficiency
• Complies with SEMI F47
• Harmonic attenuator (Complies with IEC61000-3-2)
• Wide input voltage range: 1Φ 180 - 528VAC
• Built-in inrush current, overcurrent and overvoltage protection circuits

Free warranty period 5-year (Refer to Instruction Manuals)

Release year: 2026

What's great about the FDA series?

Compact design with the same performance as the FCA series, offering greater design flexibility.
Wide input voltage range for worldwide power supply compatibility.

Technical features

  • Adjustable Output Voltage
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

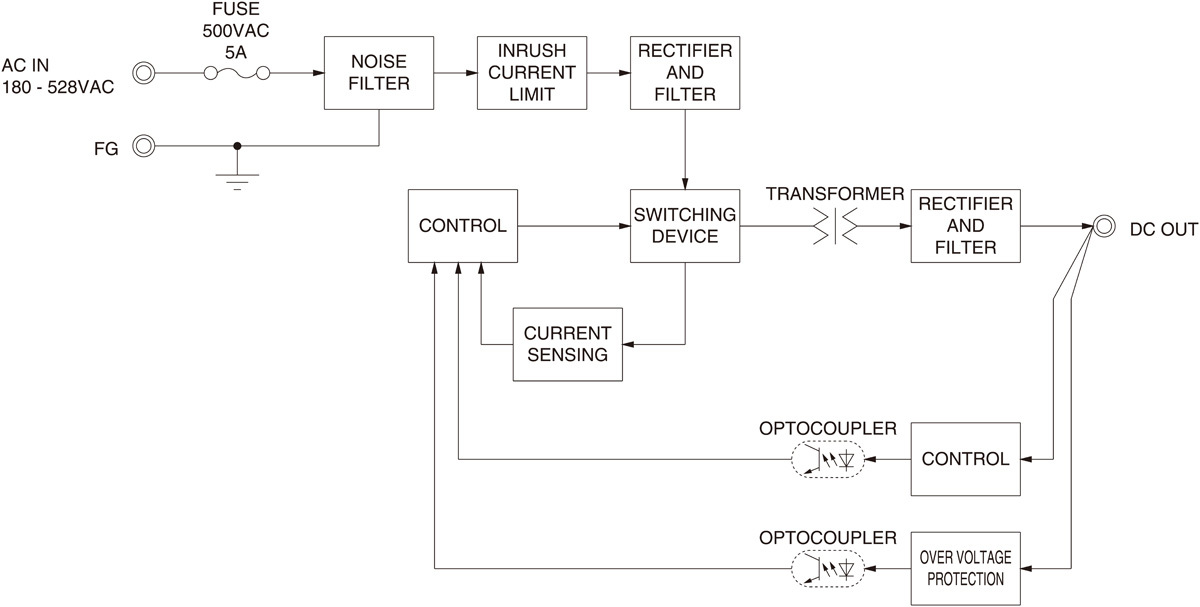

Block diagram

/tool/tag/fig/e_blo_fda50f.jpg

FD(1)　A(2)　50(3)　F(4)　-　□(5)　-　□(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Full range input
(5) Output voltage
(6) Optional
  C: with Coating
  N1: with DIN rail
  L: with operation LED
Data sheet download Instruction manual

FDA50F specifications (overview)

Product FDA50F-24
Input voltage 180 - 528VAC 1Φ or 255 - 746VDC
Output Wattage 50.4W
Voltage・Current 24V 2.1A
Voltage variable range 21.6 - 26.4V
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 50x125x124mm
Cooling method Convection
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
