FETAseries
Rated Input: AC300 - 480V 3Φ-4Wire
Rated Output Wattage: 7000W
Rated Output Voltage: 48V,144V
• High power density
• Low profile (Meets to 1U height )
• High output voltage (FETA7000ST-144 )
• Harmonic attenuator (Complies with ＩEC61000-3-2 classA)
• Complies with SEMI F47
• Parallel Operation/Parallel Redundancy Operation
• Alarm signals, Remote ON/OFF and other functions
Free warranty period 3-year (Refer to Instruction Manuals)

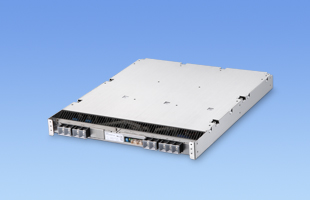

High-output voltage power supply with a 1U height.
The FETA2500/7000 series offers adjustable output voltage down to approximately 0V, providing stable power tailored to the requirements of high-frequency amplifiers, servo drive applications and etc.
The FETA3000BC further accelerates variable voltage response, contributing to enhanced equipment performance.
Harness
| Type | Model number | Description | DXF |
|---|
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model
|
|---|---|---|
| 3D CAD data | STEP |
Standard model
|
| IGES |
Standard model
|
Three-Phase Four-Wire System
500VAC 25A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter
FET(1) A(2) 7000(3) ST(4) - □□(5)
(1)Series name
(2) Single output
(3) Output wattage
(4) Three-phase four-wire input
(5) Output voltage
* For further information and how to use, please see in Cosel product catalog.
