LFA100F

LFAseries

Active (NRND)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 100W
Rated Output Voltage: 3.3V,5V,12V,15V,24V,36V,48V

• Compact Open Frame construction
• Harmonic attenuator (Complies with IEC61000-3-2)

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Open Frame
SN: with Chassis & cover

Harness

Type	Model number	Description	PDF	DXF
Harness
	H-IN-5	Mating harness for input of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-IN-10	Mating harness for input of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-IN-12	Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics)	PDF download	-
	H-OU-10	Mating harness for output with J option. (Mfr : J.S.T.)	PDF download	-
	H-OU-30	Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics)	PDF download	-
	H-RC-1	Harness for using option : -R.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (includes SN option)
3D CAD data	STEP	Standard model (includes SN option)
3D CAD data	IGES	Standard model (includes SN option)

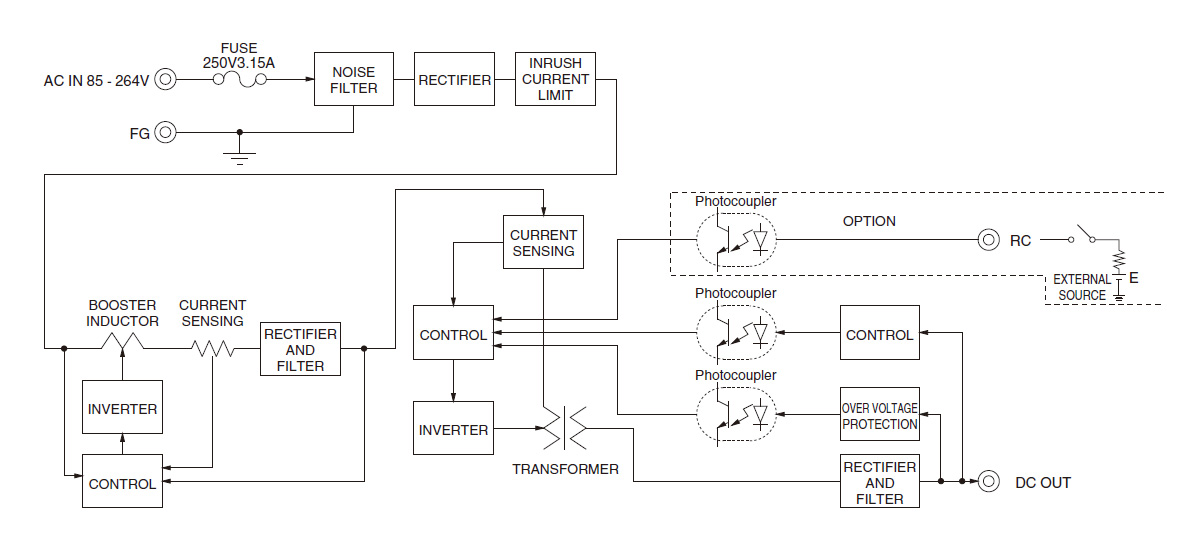

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-04-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 4A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

LHA100F
- New Product
- Recommended products
- UL62368-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
- EN62368-1
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 100W
Rated Output Voltage: 5V,12V,15V,24V,36V,48V
LHA150F
- New Product
- Recommended products
- UL62368-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
- EN62368-1
- EN62477-1 (Overvoltage category Ⅲ)
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 12V,24V,36V,48V

LF⁽¹⁾ A⁽²⁾ 100⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
  J1: VH (J.S.T.) connector type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
Please refer to Instruction manual 5.

Data sheet download

LFA100F specifications (overview)

Product		LFA100F-3R3-Y	LFA100F-5-Y	LFA100F-12	LFA100F-15	LFA100F-24	LFA100F-24-H	LFA100F-36	LFA100F-48
Input voltage		AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *
Output	Wattage	66W	100W	102W	100.5W	103.2W	103.2W (129.6W)	100.8W	100.8W
	Voltage・Current	3.3V 20A	5V 20A	12V 8.5A	15V 6.7A	24V 4.3A	24V 4.3A (Peak: 5.4A)	36V 2.8A	48V 2.1A
	Voltage variable range	2.85 - 3.63V	4.50 - 5.50V	Fixed ("Y" option is available for adjusting output voltage)	Fixed ("Y" option is available for adjusting output voltage)	Fixed ("Y" option is available for adjusting output voltage)	Fixed ("Y" option is available for adjusting output voltage)	Fixed ("Y" option is available for adjusting output voltage)	Fixed ("Y" option is available for adjusting output voltage)
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	62x33.5x155mm [2.44x1.32x6.10 inches]
Structure	Cooling method	Convection (Refer to Instruction Manual 3.1 and 3.2) *
Technical data	Characteristic data						-
	Estimated life data						-
	EMC data						-
	Reliability
	MTBF						-

* For further information and how to use, please see in Cosel product catalog.
