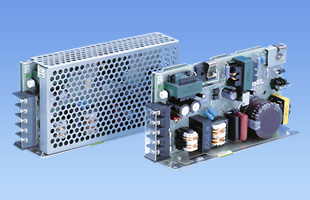

PAA50F

PAAseries

Production discontinued (May 31, 2015)
UL60950-1
EN60950-1
EN50178
CSA C22.2 No.60950-1 Complies with DEN-AN and IEC60950-1

Discontinued : 2015,May.
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 50W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF
Replacement
Replacement	F-PPBA50-1	Attachment plate for replacement to PBA series from P, PAA series.	PDF download	DXF download

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

PAA⁽¹⁾ 50⁽²⁾ F⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover
  R: with Remote ON/OFF

Data sheet download

PAA50F specifications (overview)

Product		PAA50F-3	PAA50F-5	PAA50F-12	PAA50F-15	PAA50F-24	PAA50F-48
Input voltage		AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ
Output	Wattage	30W	50W	51.6W	52.5W	52.8W	52.8W
	Voltage・Current	3V 10A	5V 10A	12V 4.3A	15V 3.5A	24V 2.2A	48V 1.1A
	Voltage variable range	2.85 - 3.6V	±10%	±10%	±10%	±10%	±10%
Applicable standards	Safety Certifications	UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with DEN-AN and IEC60950-1
Structure	External dimensions (W×H×D)	37x85x159mm (without terminal block)
Structure	Cooling method	Convection
Technical data	Characteristic data	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
