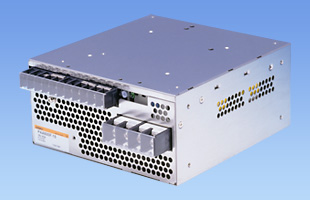

PAA600F

PAAseries

Production discontinued (May 31, 2015)
UL60950-1
EN60950-1
EN50178
CSA C22.2 No.60950-1 Complies with DEN-AN and IEC60950-1

Discontinued : 2015,May
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 600W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

PAA⁽¹⁾ 600⁽²⁾ F⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  R: Positive logic control
  W: with Alarm signal

Data sheet download

PAA600F specifications (overview)

Product		PAA600F-3	PAA600F-5	PAA600F-12	PAA600F-15	PAA600F-24	PAA600F-48
Input voltage		AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ	AC85 - 264V 1Φ
Output	Wattage	360W	600W	636W	645W	648W	624W
	Voltage・Current	3V 120A	5V 120A	12V 53A	15V 43A	24V 27A	48V 13A
	Voltage variable range	2.85 - 3.45V	±10%	±10%	±10%	±10%	±10%
Applicable standards	Safety Certifications	UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with DEN-AN and IEC60950-1
Structure	External dimensions (W×H×D)	190x92x200mm (without terminal block and screw)
Structure	Cooling method	Forced cooling (internal fan)
Technical data	Characteristic data	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
