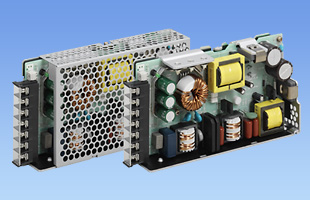

PBA150F

PBAseries

To Be Discontinued (October 20, 2026)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 3.3V,5V,9V,12V,15V,24V,36V,48V

• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V): PBA1500T AC170-264V 3Φ
• Complies with the SEMIF47 standard(Refer to instruction manual)
• Wide product lineup ranging from 10 W to 1500 W

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

<p>Attachment Plate, Attachment for Replacement, DIN Rail Attachment Plate, Harness</p>

Type	Model number	Description	PDF	DXF
DIN rail Attachment Plate
DIN rail Attachment Plate	FD-PBA100	DIN rail attachment plate. (DIN rail width : 35mm)	PDF download	DXF download
Attachment
	F-PBA150-1	Attachment plate to facilitate mounting. (For the bottom side mounting)	PDF download	DXF download
	F-PBA150-2	Attachment plate to facilitate mounting. (For the front side/back side mounting)	PDF download	DXF download
Harness
	H-IN-3	Mating harness for input with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-IN-27	Mating harness for input with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-OU-18	Mating harness for output of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-RC-1	Harness for using option : -R.	PDF download	-
	H-SN-1	Harness for using option : -K.	PDF download	-
	H-SN-18	Please refer catalog of applicable model for usage.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (includes N option) N1:DIN rail installation type(with Cover) T:Vertical terminal block J1:VH (J.S.T.) connector type (Only -12, -15, -24, -36, -48)
3D CAD data	STEP	Standard model (includes N option)
3D CAD data	IGES	Standard model (includes N option)

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PJA150F
- Recommended products
- UL62368-1
- C-UL (CSA62368-1)
- EN62368-1
- UL508 (Except option -J) Complies with DEN-AN
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 12V,15V,24V,36V,48V
PDA150F
- New Product
- Recommended products
- UL62368-1
- c-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 5V, 12V,15V, 24V

PB⁽¹⁾ A⁽²⁾ 150⁽³⁾ F⁽⁴⁾ - 5⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current (0.15mA max/ACIN 240V)
  E: Low leakage current and EMI class A (0.5mA max/ACIN 240V)
  T: Vertical terminal block
  J1: VH (J.S.T.) connector type (Only -12, -15, -24, -36, -48)
  R: with Remote ON/OFF
  N: with Cover (Only 24V UL508 is acquired)
  N1: with DIN rail and Cover
  V: Output voltage setting potentiometer externally

Data sheet download

PBA150F specifications (overview)

Product		PBA150F-3R3	PBA150F-5	PBA150F-9	PBA150F-12	PBA150F-15	PBA150F-24	PBA150F-36	PBA150F-48
Input voltage		AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *
Output	Wattage	99W	150W	150.3W	156W	150W	156W	154.8W	158.4W
	Voltage・Current	3.3V 30A	5V 30A	9V 16.7A	12V 13A	15V 10A	24V 6.5A	36V 4.3A	48V 3.3A
	Voltage variable range	2.85 - 3.63V	4.00 - 5.50V	7.50 - 10.0V	10.0 - 13.2V	13.2 - 18.0V	19.2 - 27.0V	28.8 - 39.6V	39.0 - 53.0V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	34x93x168mm [1.34x3.66x6.61 inches] (without terminal block)
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
