PDWseries

PDW30F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (CSA62368-1)
  • EN62368-1
  • Complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 30W
Rated Output Voltage: ±12V (+24V reference number) , ±15V (+30V reference number)

• Enclosed type power supply
• Harmonic attenuator (Complies with IEC61000-3-2)
• Complies with SEMI F47

Free warranty period 5-year (Refer to Instruction Manuals)

Release year: 2026

What's great about the PDW series?

General-purpose enclosed power supply.
Designed with the same external dimensions and mounting specifications as the PBA series, making replacement and redesign simple.
Improved power efficiency reduces heat generation, allowing greater flexibility in layout.

Technical features

  • Adjustable Output Voltage
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model (includes N option)
3D CAD data STEP Standard model
IGES Standard model

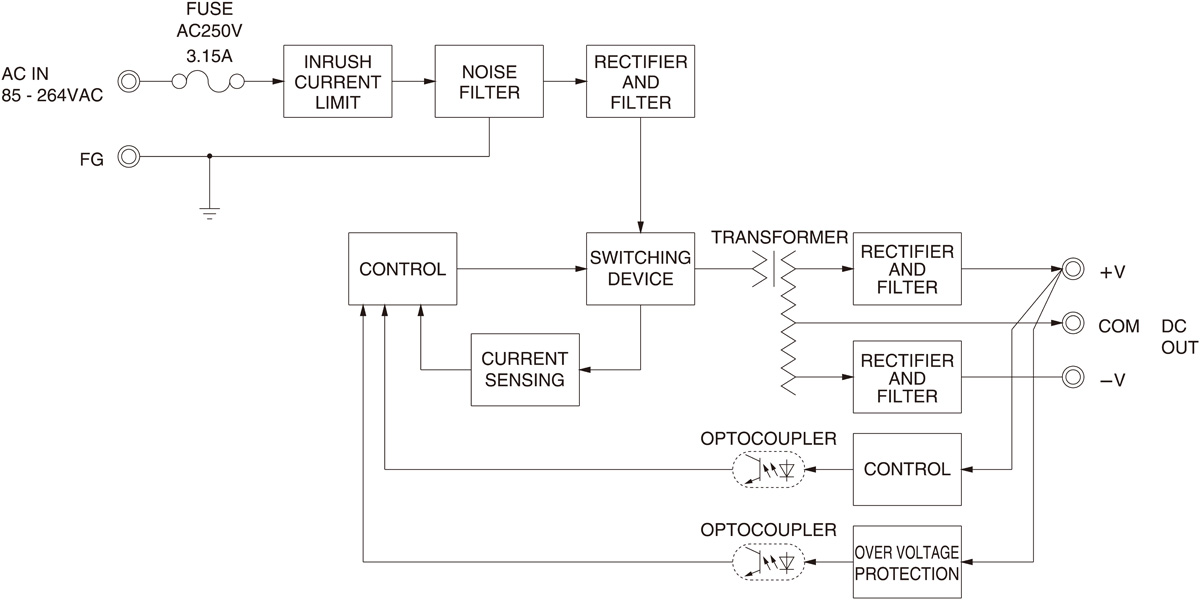

Block diagram

/tool/tag/fig/e_blo_pdw30f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-06-472

    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 6A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

PD(1)    W(2)    30(3)    F(4)    -    □(5)    -    □(6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
    C: with Coating
    N: with Cover
Data sheet download Instruction manual

PDW30F specifications (overview)

Product PDW30F-12 PDW30F-15
Input voltage 85 - 264VAC 1Φ * 85 - 264VAC 1Φ *
Output Wattage 31.2W 30W
Voltage・Current ±12V (+24V)
Rated Current1: 1.3A
Rated Current2: 1.7A * 		±15V (+30V)
Rated Current1: 1.0A
Rated Current2: 1.4A *
Voltage variable range 9.60 - 13.2V (+V and -V are simultaneously adjusted) 13.2 - 16.5V (+V and -V are simultaneously adjusted)
Applicable standards Safety Certifications UL62368-1, C-UL (CSA62368-1), EN62368-1, Complies with DEN-AN
Structure External dimensions (W×H×D) 31x78x103mm [1.22x3.07x4.06 inches] (without terminal block)
Cooling method Convection / Forced air *
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
