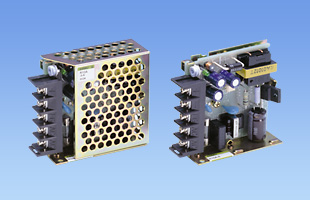

R10A

Rseries

Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 10W
Rated Output Voltage: 3V,5V,12V,15V,24V

• Small size and light
• Built-in inrush current, overcurrent and overvoltage protection circuits

Free warranty period 3-year

Attachment Plate, DIN Rail Attachment Plate, Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

R⁽¹⁾ 10A⁽²⁾ - 5⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Output wattage
(3) Output voltage
(4) Optional
  G: Low leakage current
  J: Connector type
  N: with Cover

Product		R10A-3	R10A-5	R10A-12	R10A-15	R10A-24
Input voltage		AC85 - 132V 1Φ or DC90 - 170V（at ACIN 90V, Io=80%）	AC85 - 132V 1Φ or DC90 - 170V（at ACIN 90V, Io=80%）	AC85 - 132V 1Φ or DC90 - 170V（at ACIN 90V, Io=80%）	AC85 - 132V 1Φ or DC90 - 170V（at ACIN 90V, Io=80%）	AC85 - 132V 1Φ or DC90 - 170V（at ACIN 90V, Io=80%）
Output	Wattage	6W	10W	10.8W	10.5W	12W
	Voltage・Current	3V 2.0A	5V 2.0A	12V 0.9A	15V 0.7A	24V 0.5A
	Voltage variable range	2.85 - 3.6V	4.5 - 5.5V	10.8 - 13.2V	13.5 - 16.5V	21.6 - 26.4V
Applicable standards	Safety Certifications	UL60950-1, C-UL Complies with DEN-AN
Structure	External dimensions (W×H×D)	26x68x68mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-	-	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
