ZSseries

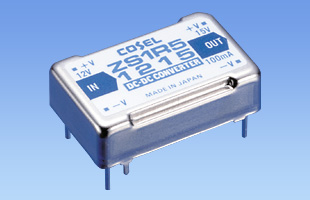

ZS1R5

  • Production discontinued (April 30, 2008)
Discontinued : 2008,Apr.
Rated Input: DC4.5 - 6V, DC10 - 15V, DC20 - 30V, DC35 - 63V *
Rated Output Wattage: 1.5W
*Input voltage range depends on model
-

Free warranty period 5-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

  • MUS1R5

    • New Product
    • Recommended products
    • UL62368-1
    • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
    • EN62368-1
    • RoHS
    Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
    Rated Output Wattage: 1.5W
    Rated Output Voltage: 3.3V, 5V, 12V, 15V

Z(1)    S(2)    1R5(3)    05(4)    12(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Data sheet download

ZS1R5 specifications (overview)

Product ZS1R50505 ZS1R50512 ZS1R50515 ZS1R51205 ZS1R51212 ZS1R51215 ZS1R52405 ZS1R52412 ZS1R52415 ZS1R54805 ZS1R54812 ZS1R54815
Input voltage DC4.5 - 6.0V DC4.5 - 6.0V DC4.5 - 6.0V DC10 - 15V DC10 - 15V DC10 - 15V DC20 - 30V DC20 - 30V DC20 - 30V DC35 - 63V DC35 - 63V DC35 - 63V
Output Wattage 1.25W 1.44W 1.5W 1.25W 1.44W 1.5W 1.25W 1.44W 1.5W 1.25W 1.44W 1.5W
Voltage・Current 5V 0.25A 12V 0.12A 15V 0.1A 5V 0.25A 12V 0.12A 15V 0.1A 5V 0.25A 12V 0.12A 15V 0.1A 5V 0.25A 12V 0.12A 15V 0.1A
Voltage variable range
Applicable standards Safety Certifications
Structure External dimensions (W×H×D)
Cooling method
Technical data Characteristic data - - - - - - - - - - - -
Estimated life data - - - - - - - - - - - -
EMC data - - - - - - - - - - - -
Reliability -
MTBF - - - - - - - - - - - -

* For further information and how to use, please see in Cosel product catalog.
